Airbus A300B4-203F

Ferris Air > Our Fleet > Airbus A300B4-203F

A300B4-203F

Aircraft Summary

Ferris Air

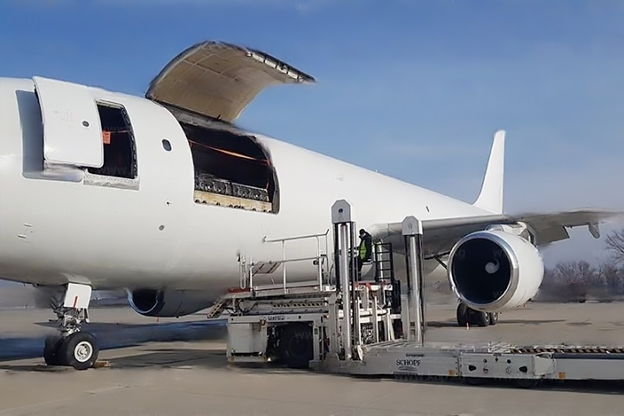

DOOR SIZES & SILL HEIGHTS

Main cargo door	Fwd underfloor	Aft underfloor	Aft loose belly	Main cargo door sill	Underfloor sill fwd	Underfloor sill aft	Belly door loose sill
141” x 101” / 3.58m x 2.56m	66.8” x 96” / 1.67m x 2.44m	66.2” x 71.2” / 1.68m x 1.81m	42.4” x 37.4” / 1.08m x 0.95m	182” / 4.64 m	106” / 2.68 m	115” / 2.92 m	118” / 2.99 m

OTHER DATA

Max Payload	Max Cruise speed	Range when empty	Range max payload	MTOW	MLDGW	MZFW	Operating wt empty
99.207 lbs / 42.000 kg	468 kts / 852 kmph	3.650 nm	1.679 nm	363.760 lbs / 165.000 kg	295.419 lbs / 134.000 kg	277.782 lbs / 126.000 kg	179.677 lbs / 81.500 kg

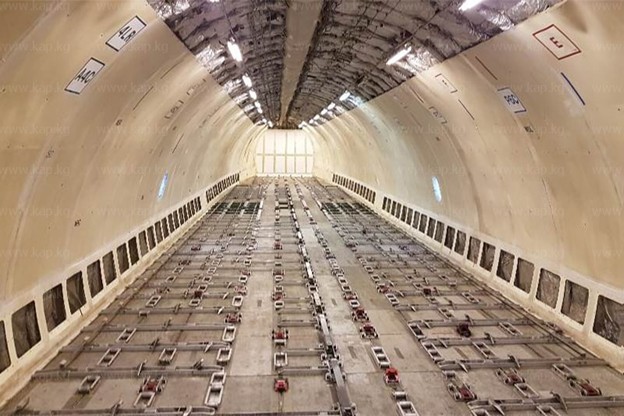

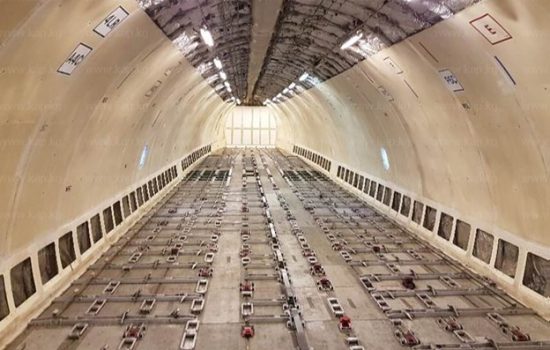

MAIN CABIN DIMENSIONS

Length (aircraft)	Width (aircraft)	Height (aircraft)	Fuselage diameter	Volume maindeck	Volume underfloor	Volume loose belly	Total load volume
175 ft11” / 53.62 m	14 ft 10” / 4.52 m	54 ft 3” / 16.53 m	18 ft 6” / 5.64 m	10757 ft³ / 304.6 m³	2500 ft³ / 70.8 m³	565 ft³ / 16 m³	13822 ft³ / 391.4 m³

LOAD VOLUMES

Main deck	Lower deck: Forward	Lower deck: Aft	Lower deck: Bulk
20 ULD - 88”x125”x82 @ 11.8 m³ = 236 m³	4 ULD - 88”x125”x62” @ 10.3 m³ = 41.2 m³ or 6 ULD - 60.4”x125”x88” @ 7.33 m² = 44 m²	4 ULD - 125”x60.4”x64” @ 7.2 m³ = 28.8 m³	= 16 m³

MAXIMUM BAY WEIGHTS PER POSITION

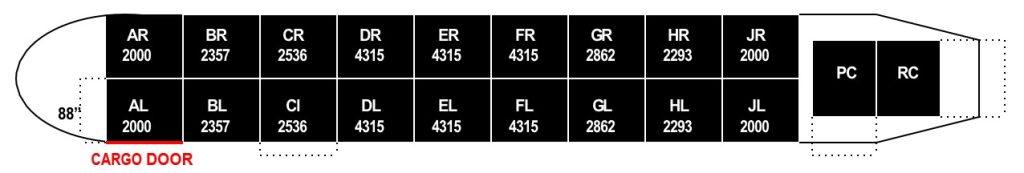

MAIN DECK (in KGS)

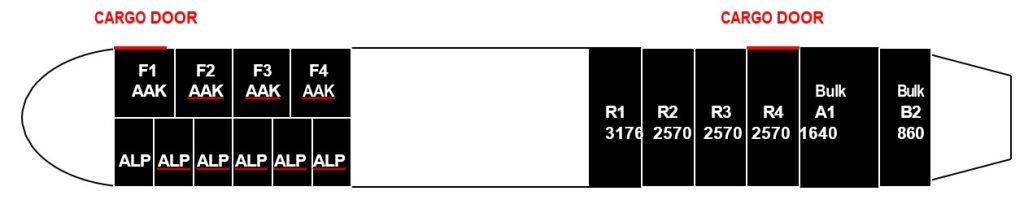

UNDERFLOOR (in KGS)

PALLETISATION ARRANGEMENT

STANDARD LOADING

Main deck loading (double row) (AAC)	Lower deck: Forward	Lower deck: Aft
20 ULD - 125”x88”x82”	4 x 88” / 125” AAK or 6 x 60.4” / 125” ALP	4 x 60.4” / 125” ALP or 8 x 60.4” / 62.5” AKE
